English Patent Application

No 16,899. - A.D 1896

Pedersen's Improvements or connected with bicycles.

(3) The top joints of the frame substantially as described & particularly shown in Drawings 3 & 4.
(4) The joint of the tubes at the rear and of the back wheel forks substantially as described and particularly shown in Drowning 5.
(5) The method of making the saddle with cross strings & loose longitudinal cords substantially as described

Dated this 29th day of july 1896

MIKAEL PEDERSEN

Redhill: Printed for Her Majesty's Stationary Office, by Malcomson & Co. Ltd - 1897.

AD 1896, July 30. No 16,899

PEDERSEN'S COMPLETE SPECIFICATION.

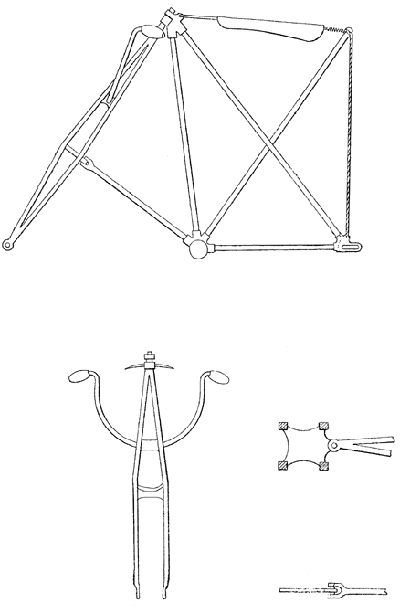

Drawing that follow with the Patent Application in England.

Diagram with the first British patent, Sept. 1893 (Gloucester Records Office)

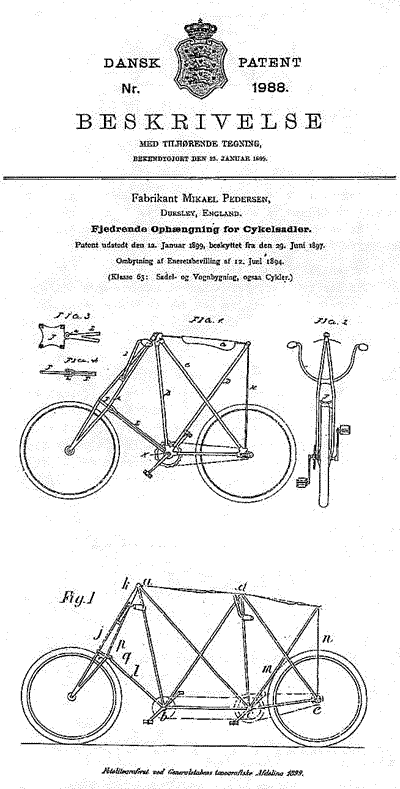

Danish Patent Application

Mikael Pedersen only applied a patent for the hammock, because his application for the frame was turned down, as too complicated (?).

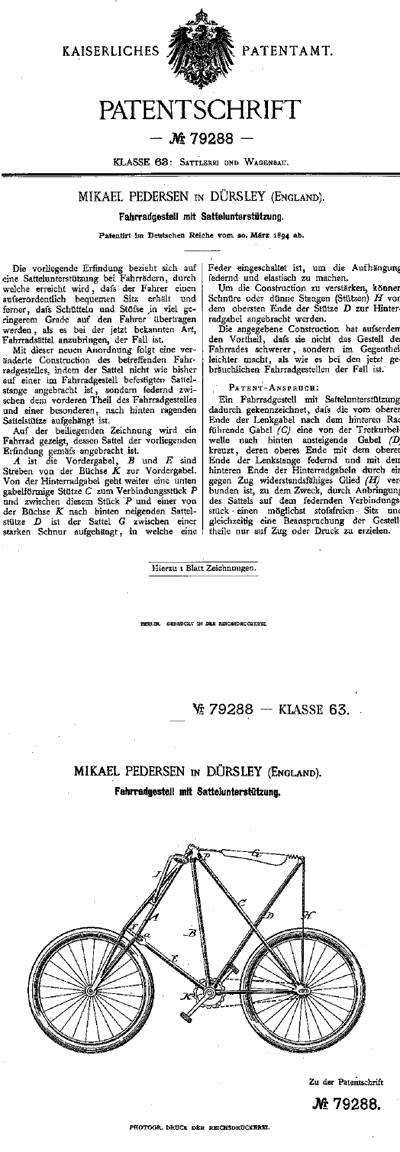

German Patent Application

View a PDF file here:
http://www.dpma.de/galerie/rad2002/schriften/de0000079288a.pdf
